| Screen Model |

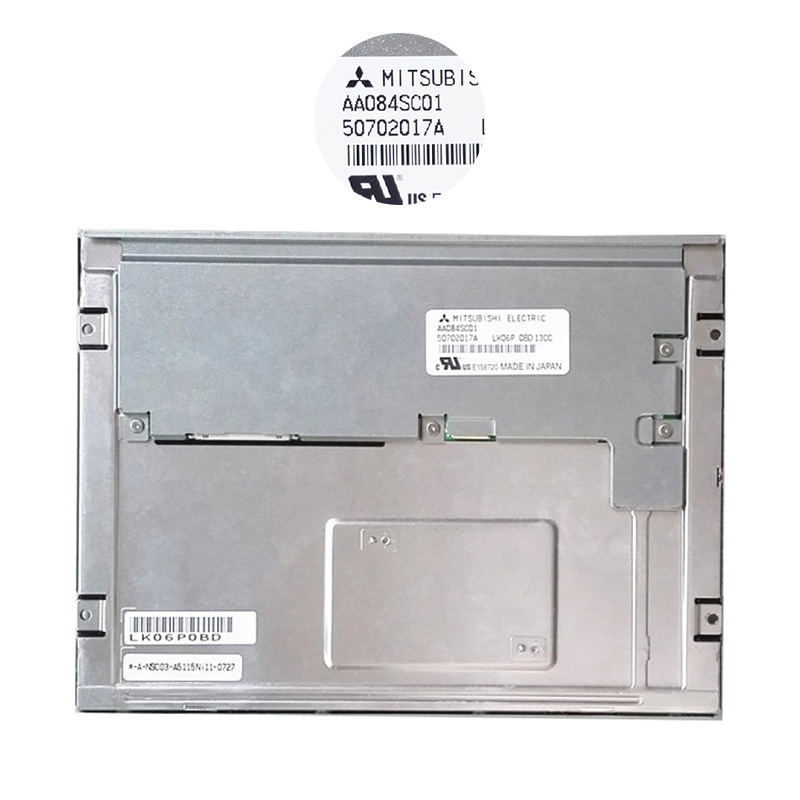

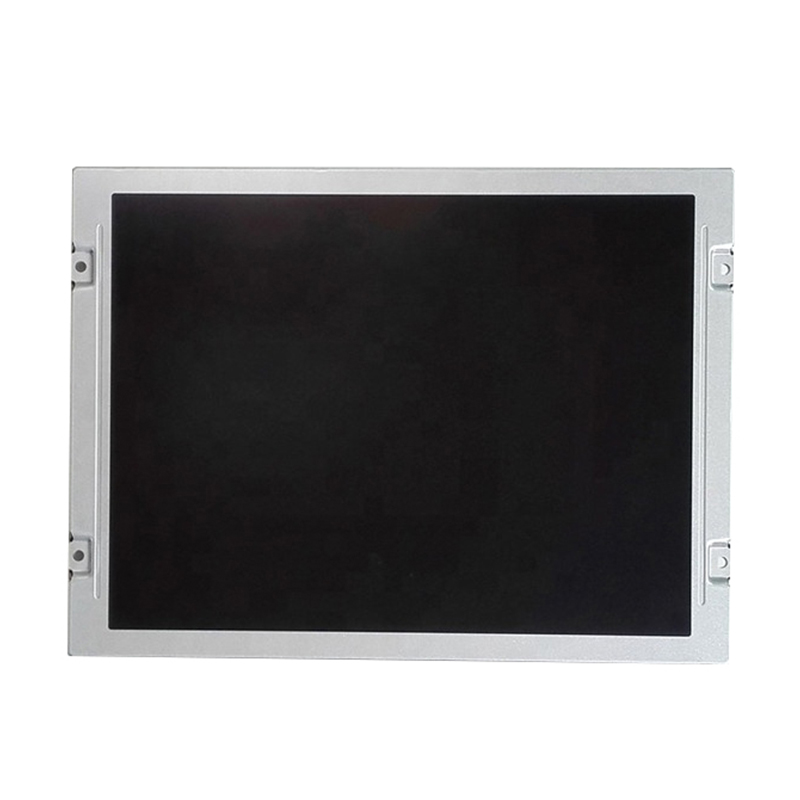

AA084SC01 |
Screen Size |
8.4″ inch |
| Resolution |
800(RGB)×600, SVGA 119PPI |
Brightness |
600 cd/m² (Typ.) (Typ.) |
| Active Area |
170.4(W)×127.8(H) mm |
Outline Dim |
199.5 × 149 × 10.2 (H×V×D) |
| Treatment |
Antiglare, Hard coating (3H) |
Contrast Ratio |
1000:1 (Typ.) (TM) |
| Viewing Angle |
88/88/88/88 (Typ.)(CR≥10) |
Operating Mode |
SWV, Normally Black, Transmissive |
| Frame Rate |
60Hz |
Light Source |
WLED , 100K hours , With LED Driver |
| Interface Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Power Supply |
3.3V (Typ.) </td |
| Operating Temperature |
-30 ~ 80 °C |
Storage Temperature |
-30 ~ 80 °C </td |
